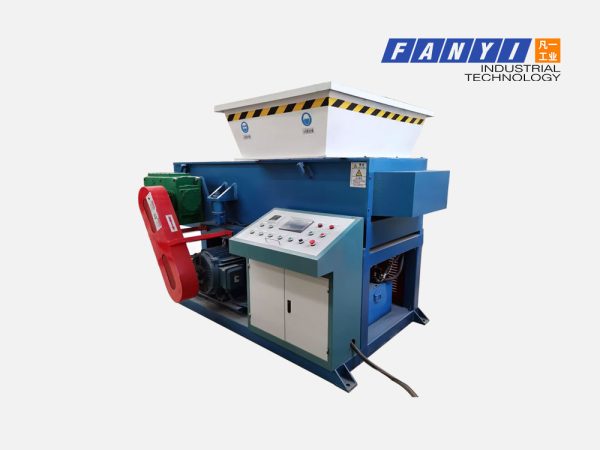

Single Shaft Shredder

The single-shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials:

•Refuse-derived fuel: straw, municipal solid waste;
•Textile: cloth fiber, nylon;
•Paper: industrial waste paper, packing paper, cardboard paper;
•Cable wires: copper core cable, aluminum cable, composite cables;
•Polypropylene pipe, industrial packaging & plastic films, PP woven bags;
•Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums;

Category: Tags: ,

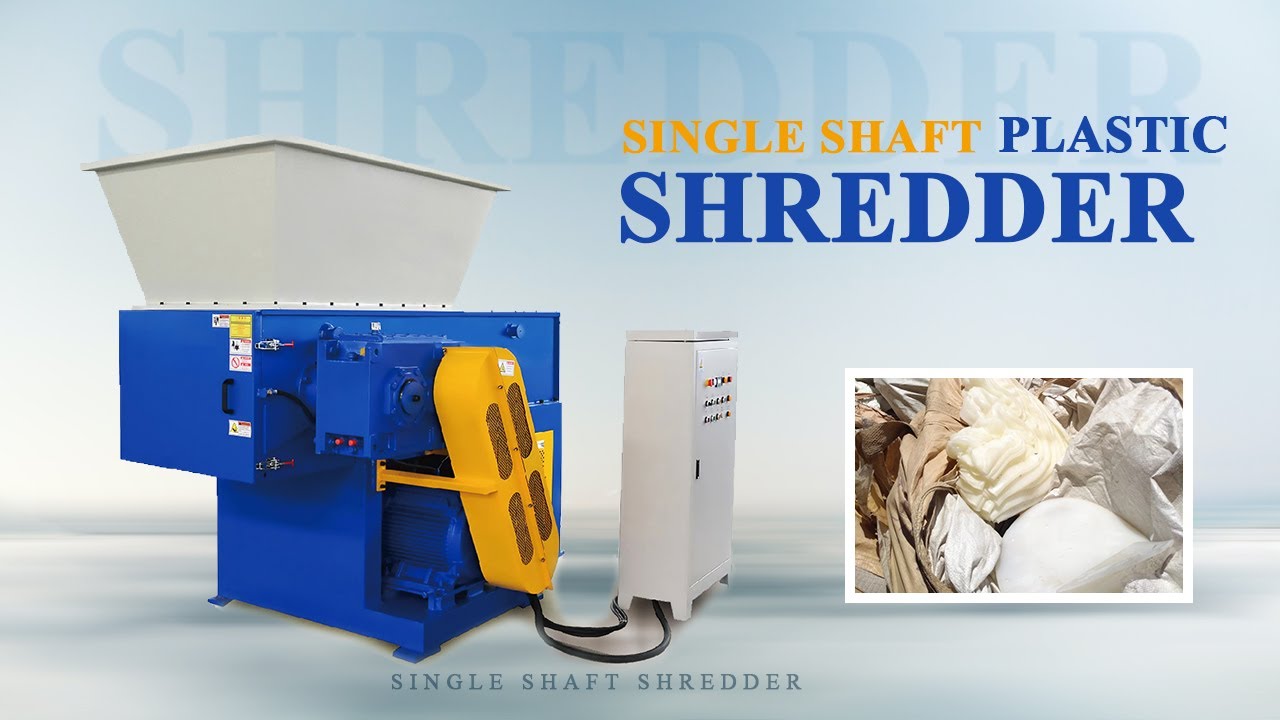

The single shaft plastic shredder machine is mainly used in handling PE PP PVC ABS lumps, pipe, baled film, etc.

This single shaft plastic shredder machine is new designed especially for shredding various big solid materials, unmanageable materials, plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle.

This plastic shredder machine has the advantages of stable running lower noise and big torque…

The materials are pushed into the shredding chamber by hydraulic. Independent drive system and solid structure make the running stably.

Single Shaft Shredder

Shredder Features:

  • 1)Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material
  • 2)PLC control system with automatic overload protection and auto reverse switch
  • 3)Unique hydraulic pushing system accelerates the shredding speed, for light material particularly
  • 4)Each dynamic blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree
  • 5)Each fixed blades has four cutting edges which enable reutilization after being abraded, by rotating 180 degree
  • 6)Quiet operation at low speed
  • 7)Screen perforation is adjustable according to customers’ requirement
  • 8)The shredders can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.

Single Shaft Shredder

Product Parameters

Model 600 800 1000 1200 1500
Shaft Length (mm) 600 800 1000 1200 1500
Shaft Diameter (mm) 220 400 400 400 400
Main Motor (KW) 18.5 37 45 / 55 55/75 75/90
Hydraulic Power (KW) 2.2 2.2 2.2 5.5 5.5
Rotary Blades (PC) 26 46 58 70 90
Fixed Blades (PC) 2 2 2 3 3
Capacity (kg/h) 200-300 400-600 700-1000 900-1200 1300-1600

Machine Features

Single Shaft Shredder Single Shaft Shredder Single Shaft Shredder Single Shaft Shredder
Single Shaft Shredder-GS Series

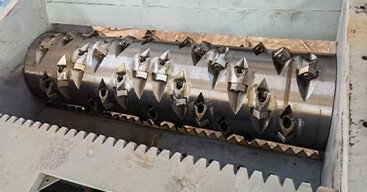

Rotary shaft

The rotary shaft made by high quality carbon steel, anti-worn

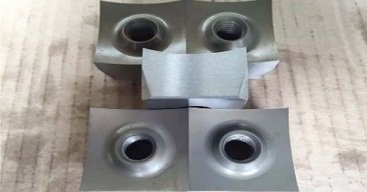

Rotor blade

The rotor blade made by D2, fixed on the blades holder by screw easy to remove and maintenance, blade can use 4 times when the blade worn after using long time

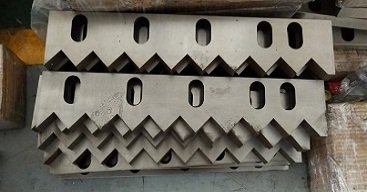

Fixed Blade

The fixed blades are movables to adjust and longer time use . Using D2 material, USA Standard, HRC 58-59 more better than SKD-II, We also can use DC53 material
Single Shaft Shredder Single Shaft Shredder Single Shaft Shredder Single Shaft Shredder

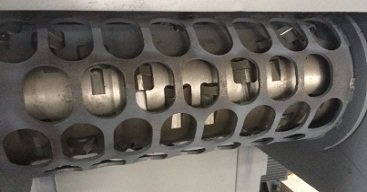

Screen

The screen use 10mm thickness carbon steel made, with 40-100mm screen, the flakes will easy shredding and down

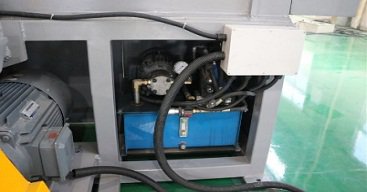

Hydraulic pump station

Oil cylinder effective working. Pushing speed is adjusted by manual

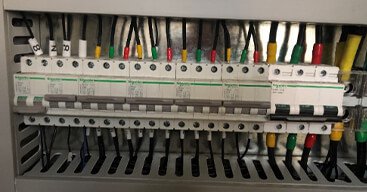

Contactors

Use Schneider brand in us control system

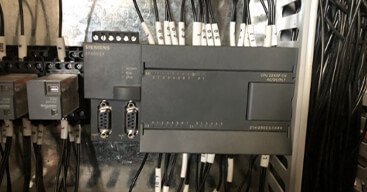

PLC

Use Siemens PLC for shredder machine. Automatic control rotor shaft positive, negative rotary
