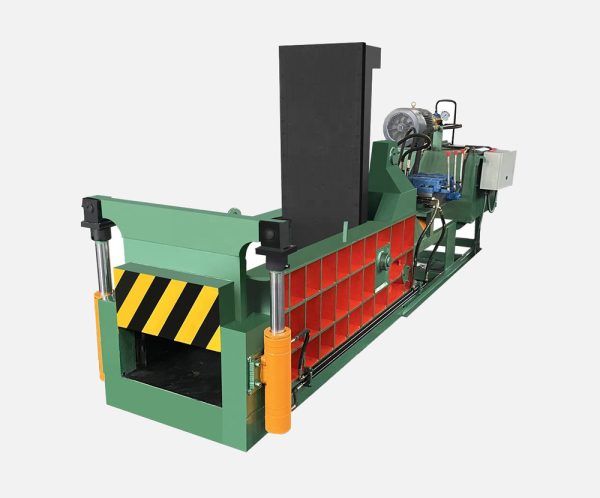

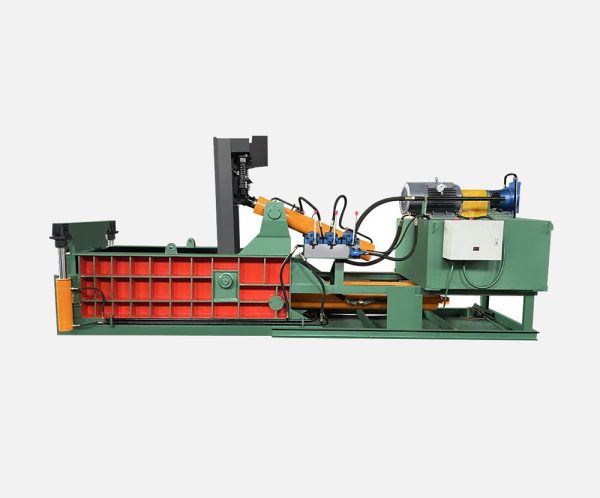

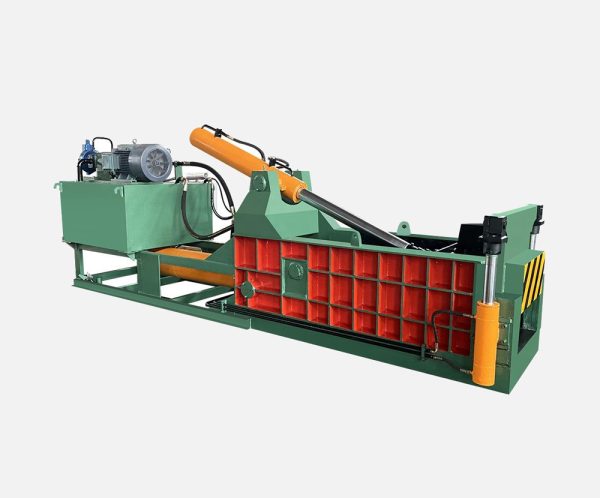

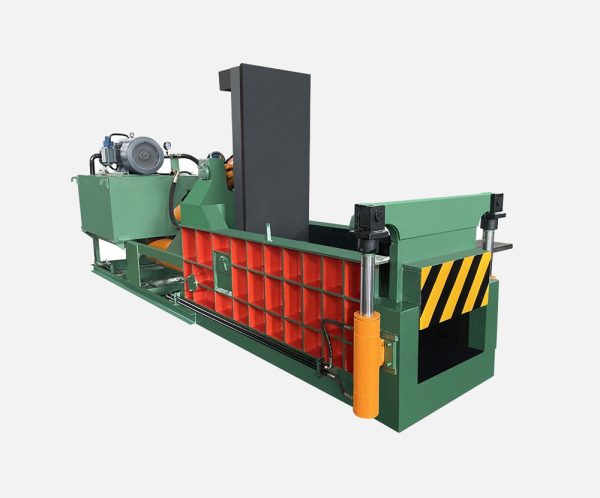

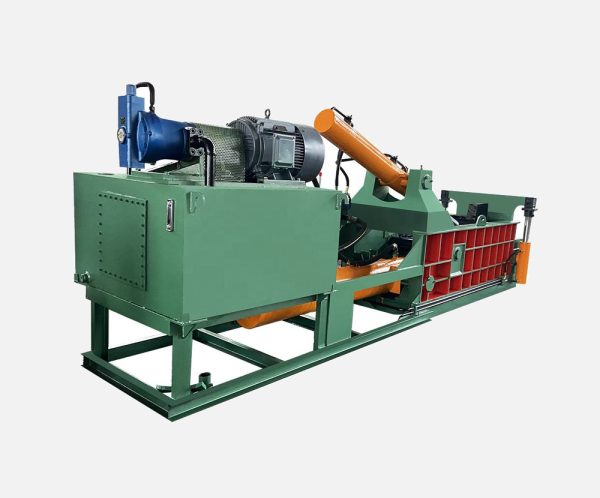

scrap bale machine Y81T-160A
Scrap Bale Machine Y81T-160A is applied in steel mills, foundries, recycling plants, ferrous & non ferrous smelting industry to press scrap metal into acceptable furnace charges in shapes of cuboids, cylinders & octagons.
Scrap Bale Machine Y81T-160A is good for car scrap (cut to pieces), bicycles, roof & fence material, tin plates, rebars, empty cans & drums (without paint), all sorts of metal sheets / plates, bars / rods, pipes / tubes, turnings / shavings, light metallic structural parts, miscellaneous low carbon scrap steel, and non ferrous metal scrap (stainless steel, aluminum alloy, copper, etc).
Features
3-way compression, bale density is high.
Robust baler chamber of welding structure. Wear plates: standrad #45 steel (carbon steel), wholy heat treated; optional Mn65 steel wear plates. Cutting blades: optional.
Hydraulic oil cooler: standard water cooler (need cooling tower to supply cool water); optional normal air cooler, or compulsory air cooler (air cooler with compressor).
Magnetic return oil filter. NOK (Japan) seals for cylinders.
Hydraulic drive, manual valve operation, or Mitsubishi PLC operation.
Side ejection of finished bales. Loading hopper is optional for charging of material.
Y81T-160A Main Parameters:
Main cylinder force: 160 MT
Press box size: L1600×W1000×H800 MM
Bale size: W400×H400 MM
Bale weight: 100-180 kg (steel)
Production rate: 2.0-3.5 tons/hr (steel)
Electric motor: 22 kW
Application
Scrap Bale Machine Y81T-160A is applied in steel mills, foundries, recycling plants, ferrous & non ferrous smelting industry to press scrap metal into acceptable furnace charges in shapes of cuboids, cylinders & octagons.
Scrap Bale Machine Y81T-160A is good for car scrap (cut to pieces), bicycles, roof & fence material, tin plates, rebars, empty cans & drums (without paint), all sorts of metal sheets / plates, bars / rods, pipes / tubes, turnings / shavings, light metallic structural parts, miscellaneous low carbon scrap steel, and non ferrous metal scrap (stainless steel, aluminum alloy, copper, etc).
| Model | Main Cyl. Force | Press Box Size | Bale Size | Bale Weight (kg) | Production Rate (tons/hr) | Motor | ||||
| (Ton) | (mm) | (mm) | Steel | Aluminum | Copper | Steel | Aluminum | Copper | (kW) | |
| Y81Q-80C | 80 | 1800×1000×700 | 1000×260 | 40-90 | 15-30 | 45-100 | 0.8-1.8 | 0.3-0.6 | 0.9-2.0 | 15 |
| Y81T-160A | 160 | 1600×1000×800 | 400×400 | 100-180 | 35-60 | 110-200 | 2.0-3.5 | 0.7-1.2 | 2.2-3.8 | 22 |
