PC HAMMER CRUSHER

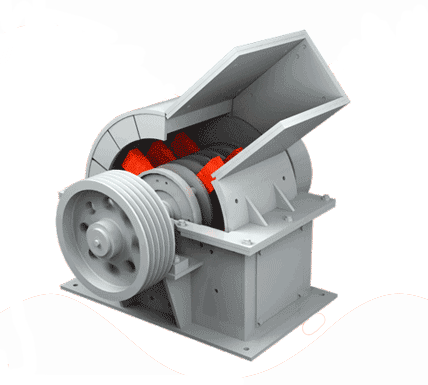

Hammer crusher is also called hammer mill, or hammer mill crusher. It is a crusher that uses a series of rotating hammers to crush materials (600-1, 800 mm) into smaller pieces (below 25 or 25 mm).

The hammer crusher is very suitable for medium and fine crushing of medium-hard and brittle materials. It is known for providing greater crushing ratios in a variety of materials for the aggregate and industrial markets.

Applicable materials

Hammer crushers can be used for dry and wet crushing. This requires that the compressive strength of the materials is less than 200Mpa and that the water content is not more than 15%.

You can crush glass, limestone, concrete aggregate, coal, gypsum, bauxite, construction waste, cement clinker, slag, coke, phosphate, dolomite, river pebbles, marble, basalt, shale, etc.



Hammer crushers

The normal hammer crushers are mainly PC series, used for small-scale production with low cost. The maximum feed size is 300 mm and the maximum capacity is 95 t/h.

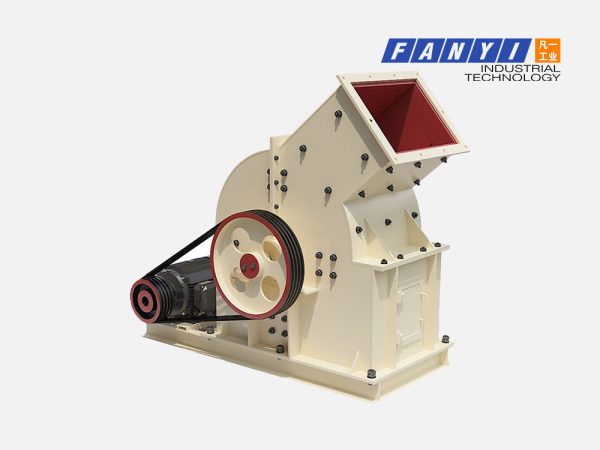

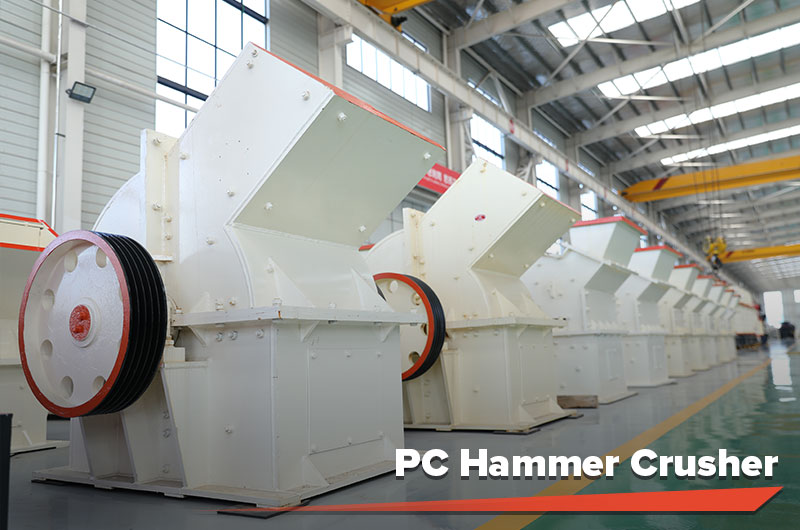

PC Hammer Crusher is known for crushing glass, coal, concrete stone, and road rocks.

Hot Sale Models of PC Hammer Crushers:

• PCΦ400×300, PCΦ600×400: Small hammer mills with small power consumption and low cost.
• PCΦ1000×800, PCΦ1000×1000: Hammer mills with a large capacity and high efficiency.

PRODUCT DATA

Technical Data of PC Hammer Crushers:

Specification	Capacity(t/h)	Power (kw)
PC 400×300	3-10	4P 11
PC 600×400	6-22	4P 22
PC 800×600	10-40	4P 55
PC 1000×800	15-50	4P 75
PC 1000×1000	18-75	4P 90
PC 1200×1200	22-95	4P 132

Note: Capacity May Vary with Different Materials and Feed Sizes.
