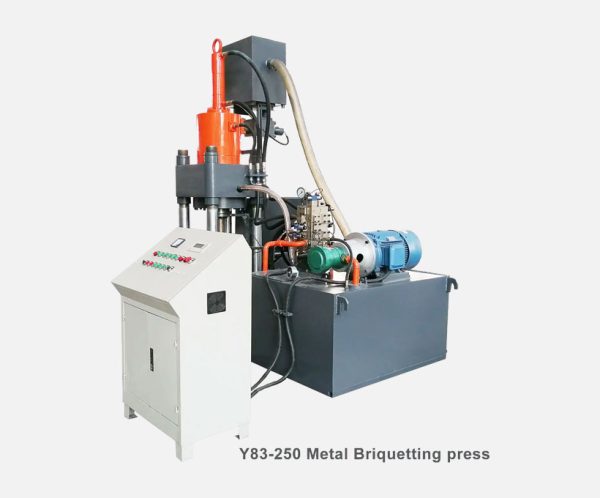

metal briquetter Y83-250
Metal Briquetter Y83-250 is applied in steel mills, foundries, recycling plants, ferrous & non ferrous smelting industry to press scrap metal chips (max. length 40mm) into high density briquettes (cylinders). Metal Briquetter Y83-250 is good for briquetting of cast iron powder, crushed steel turnings, aluminum swarf, copper milling chips, all sorts of metal sawdust, particles, chips & fins, and metal cans shredded to small pieces (smaller than 40mm).
Features
Vertical briquetter, briquette density is high.
Robust machine of solid structure, special alloy for press mould liners.
Hydraulic oil cooler: standard water cooler (need cooling tower to supply cool water); optional normal1589 air cooler, or compulsory air cooler (air cooler with compressor).
Magnetic return oil filter. NOK (Japan) seals for cylinders.
Hydraulic drive, Mitsubishi PLC operation.
Feeding conveyor & vibrating motor are optional for charging of material.
What is the Applications of this machine?
It is applied to compress metal sawdust(steel, cast iron,aluminum and copper) into density briquettes to reduce burning loss during smelting.Cast iron briquettes,can substitute pig iron as raw material.
Iron filings Aluminum scrap Copper shavings Sawdust
Y83-250 Main Parameters:
Main cylinder force: 200 MT
Auxiliary cylinder force: 55 MT
Press mould size: dia110×H180 / dia120×H180 MM
Briquette size: dia110×H(50-70) / dia120×H(50-70) MM
Briquette weight: 2.6-3.7 / 2.9-4.1 kg (cast iron)
Production rate: 800-900 kg/hr (cast iron)
Electric motor: 18.5 kW
Application
| Model | Cyl. Force | Press Mould | Pressure on Briquet |
Briquet Size | Briquet Weight – Cast Iron |
Production Rate – Cast Iron |
Motor |
| (kN) | (mm) | (MPa) | (mm) | (kg) | (kg/hr) | (kW) | |
| Y83-250 | 2000+550 | dia110×180 | 263 | dia110×(50-70) | 2.6-3.7 | 800-900 | 18.5 |
| dia120×180 | 221 | dia120×(50-70) | 2.9-4.1 | ||||
| YE83-250 | 2000+550 | dia110×300 | 263 | dia110×(70-100) | 3.6-5.2 | 1000-1100 | 22 |
| dia120×300 | 221 | dia120×(70-100) | 4.1-5.9 | ||||
| Y83-315 | 2850+550 | dia120×180 | 278 | dia120×(50-70) | 3.1-4.5 | 900-1100 | 22 |
| dia140×180 | 204 | dia140×(50-70) | 3.6-5.1 | ||||
| YE83-315 | 2850+550 | dia120×300 | 278 | dia120×(70-100) | 4.4-6.3 | 1100-1200 | 30 |
| Y83-400 | 3450+550 | dia125×300 | 326 | dia125×(70-100) | 5-7.2 | 1200-1300 | 30/37 |
| dia140×300 | 260 | dia140×(70-100) | 5.9-8.5 | ||||
| Y83-500 | 4900+600 | dia150×300 | 283 | dia150×(70-100) | 6.9-9.9 | 1300-1800 | 30/45 |
| dia180×300 | 196 | dia180×(70-100) | 8.9-12.8 | ||||
| YE83-500 | 4900+600 | dia150×300 | 283 | dia150×(70-100) | 6.9-9.9 | 1300-1800 | 45 |
| dia180×300 | 196 | dia180×(70-100) | 8.9-12.8 |
Notice：
1.The technical parameters above are not binding,we reserve the right to adjust according to the actual need.
2.If you need non-standard models with different briquette size,different briquette shape,you can call us or email us for customization.
