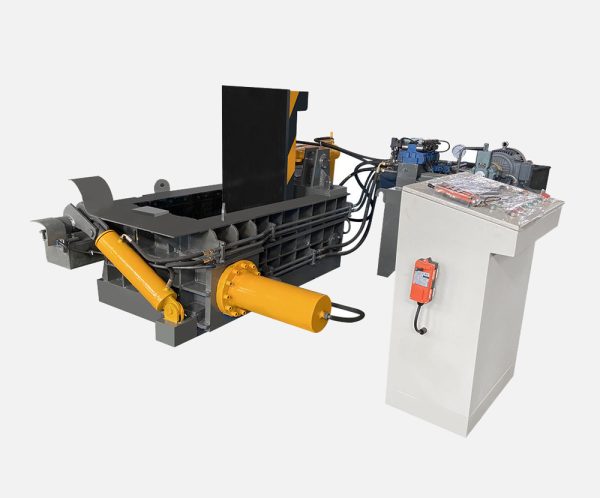

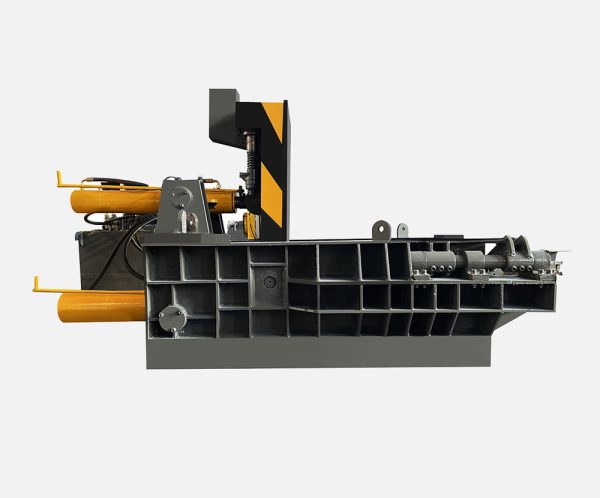

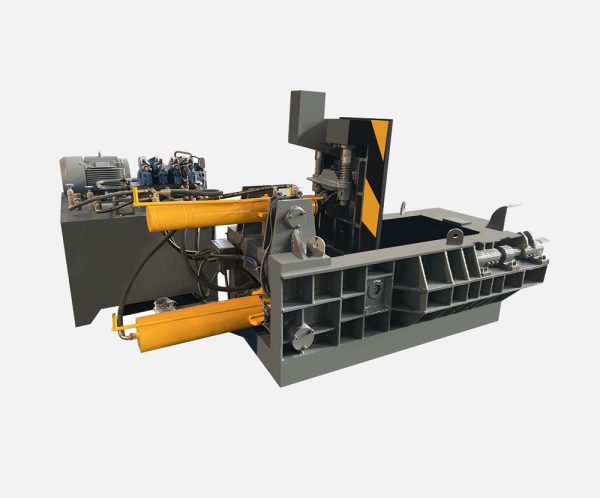

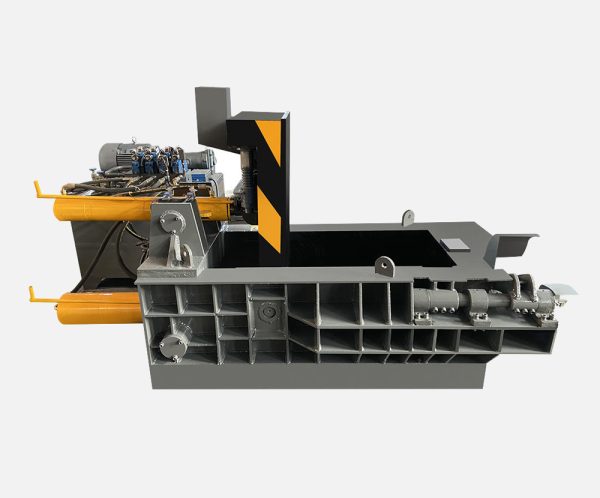

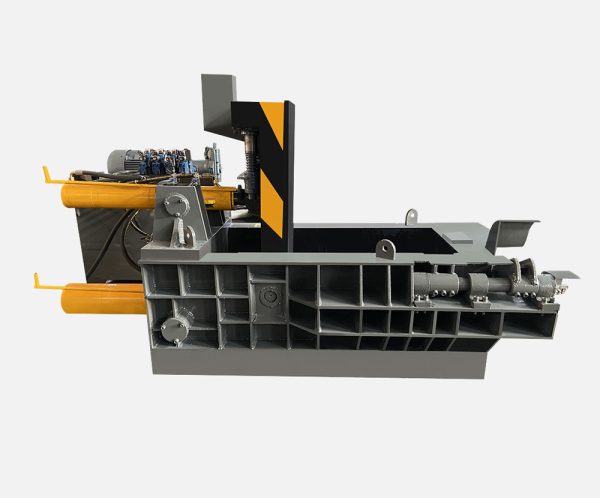

metal baler machine Y81T-125A
Metal Baler Machine Y81T-125A is applied in steel mills, foundries, recycling plants, ferrous & non ferrous smelting industry to press scrap metal into acceptable furnace charges in shapes of cuboids, cylinders & octagons.
Features
3-way compression, bale density is high.
Robust baler chamber of welding structure. Wear plates: standrad #45 steel (carbon steel), wholy heat treated; optional Mn65 steel wear plates. Cutting blades: optional.
Hydraulic oil cooler: standard water cooler (need cooling tower to supply cool water); optional normal air cooler, or compulsory air cooler (air cooler with compressor).
Magnetic return oil filter. NOK (Japan) seals for cylinders.
Hydraulic drive, manual valve operation, or Mitsubishi PLC operation.
Side ejection of finished bales. Loading hopper is optional for charging of material.
Y81T-125A Main Parameters:
Main cylinder force: 125 MT
Press box size: L1200×W700×H600 MM
Bale size: W240×H240 MM
Bale weight: 40-50 kg (steel)
Production rate: 1.0-1.2 tons/hr (steel)
Electric motor: 18.5 kW
Application
Metal Baler Machine Y81T-125A is applied in steel mills, foundries, recycling plants, ferrous & non ferrous smelting industry to press scrap metal into acceptable furnace charges in shapes of cuboids, cylinders & octagons.
Metal Baler Machine Y81T-125A is good for car scrap (cut to pieces), bicycles, roof & fence material, tin plates, rebars, empty cans & drums (without paint), all sorts of metal sheets / plates, bars / rods, pipes / tubes, turnings / shavings, light metallic structural parts, miscellaneous low carbon scrap steel, and non ferrous metal scrap (stainless steel, aluminum alloy, copper, etc).
| Model | Main Cyl. Force | Press Box Size | Bale Size | Bale Weight (kg) | Production Rate (tons/hr) | Motor | ||||
| (Ton) | (mm) | (mm) | Steel | Aluminum | Copper | Steel | Aluminum | Copper | (kW) | |
| Y81T-125A | 125 | 1200×700×600 | 240×240 | 40-50 | 15-20 | 45-55 | 1.0-1.2 | 0.3-0.4 | 1.1-1.3 | 18.5 |
| YE81T-125A | 125 | |||||||||
| Y81T-125B | 125 | 1400×700×700 | 300×300 | 60-90 | 20-30 | 65-100 | 1.5-2.0 | 0.4-0.6 | 1.6-2.2 | 22 |
| YE81T-125B | 125 | 18.5/22 | ||||||||
