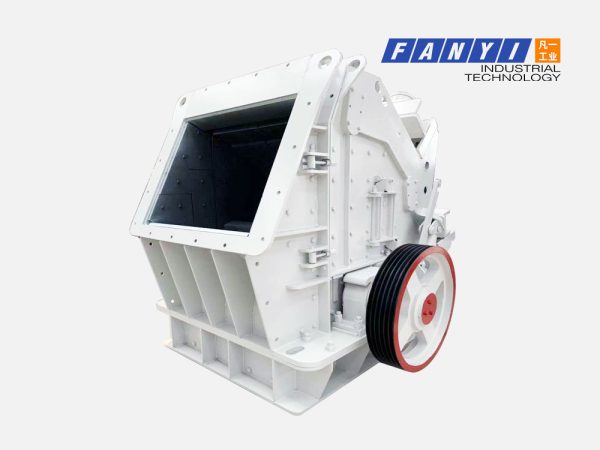

Impact Crushers

The impact crusher can process materials with a side length of less than 100-500mm, and its crushing strength can reach up to 350Mpa. It has the advantages of large crushing ratio and cubic particles after crushing.

Capacity: 15-450 t/h
Feed Size: ≤200-≤550 mm
Power: 45-250KW
Application: It is widely used in metallurgy, mining, chemical, cement, construction, refractory materials and ceramic industries for fine grinding.

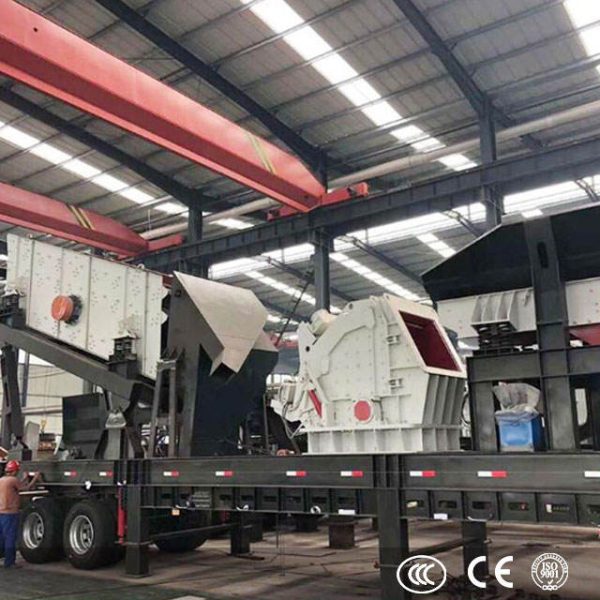

It is mainly used for fine crushing operations in the stone production line. The crusher cooperates to crush.

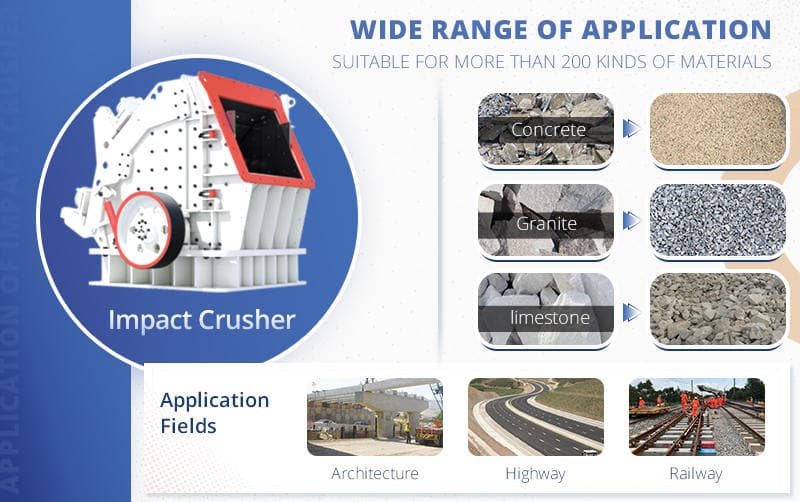

The impact crusher is mainly used in the fields of building materials, highways, railways, hydropower projects, etc. It can be configured in a variety of forms according to the types, scales and requirements of finished materials.

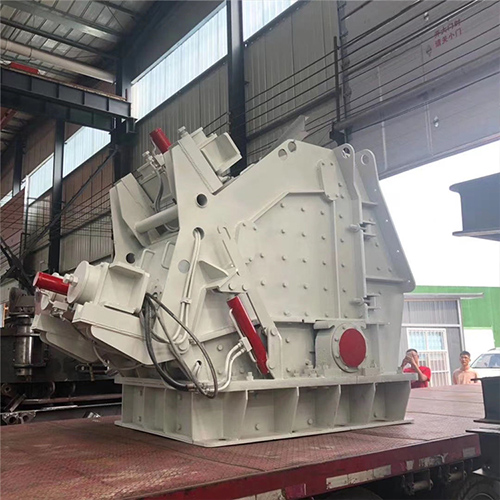

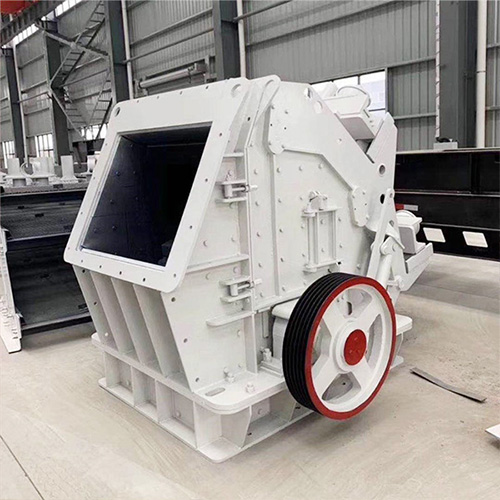

Impact Crushers

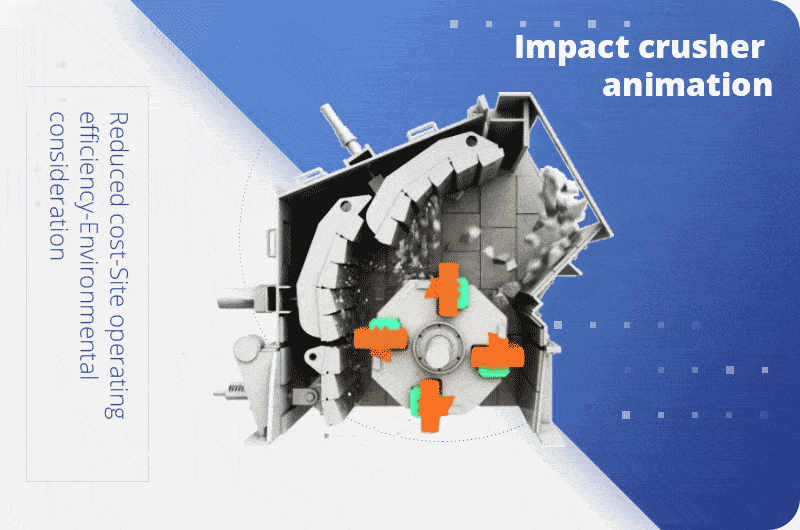

The impact crusher working principle: the impact crusher is named according to the working principle, that is, the material is crushed by the principle of impact crushing. It is a crusher equipment that is finer than the jaw crusher.

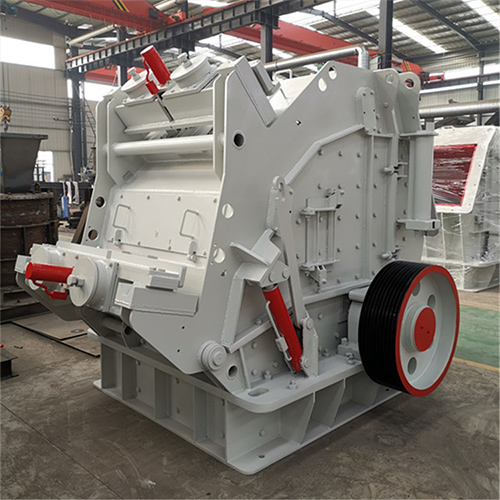

Impact Crushers

(Horizontal shaft impact crusher)

Features

quick setting adjustment with hydraulic ram mechanism
heavy-duty springs for consistent crushing force and processing of tramp iron
oversized bearings for longer service life
large feed openings and safety lockouts for safe maintenance and repairs

Advantage

Mature technology and stable operation
Large adjustable range of discharge particle size
The finished product has better grain shape

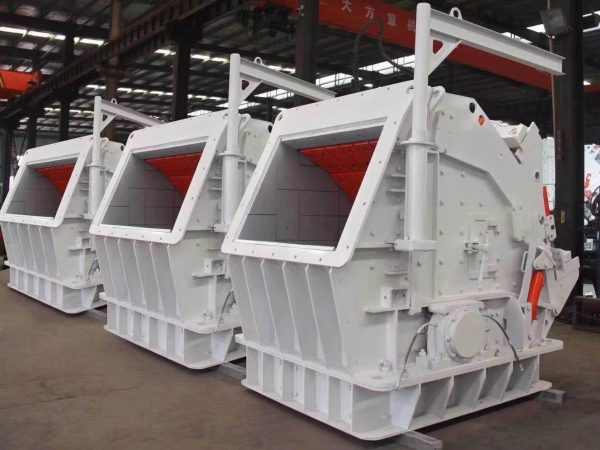

Impact Crushers

Technical Data

Model	Specificati on (mm)	FeedOpeni ng (mm)	Max. Feeding size(mm)	Capacity (t/h)	Model of motor	Power (kw)
PF-1010	Φ1000X1050	400X1080	300	50-90	Y315S-6	75
PF-1210	Φ1250X1050	400X1080	300	70-130	Y315L1-6	110
PF-1214	Φ1250X1400	400X1430	300	90-180	Y315L2-6	132
PF-1315	Φ1300X1500	680X1520	350	120-250	Y2-355M2-6	200
PF-1320	Φ1300X2000	680X1570	500	160-350	Y2-355M2-6	280
PFV-1010	Φ1000X1050	400X1030	200	35-60	Y315S-6	75
PFV-1210	Φ1250X1050	570X1030	250	70-140	Y315L1-6	110
PFV-1214	Φ1250X1400	570X1430	250	90-190	Y315L2-6	160
PFV-1315	Φ1300X1500	625X1530	300	150-280	Y2-355M2-6	200
