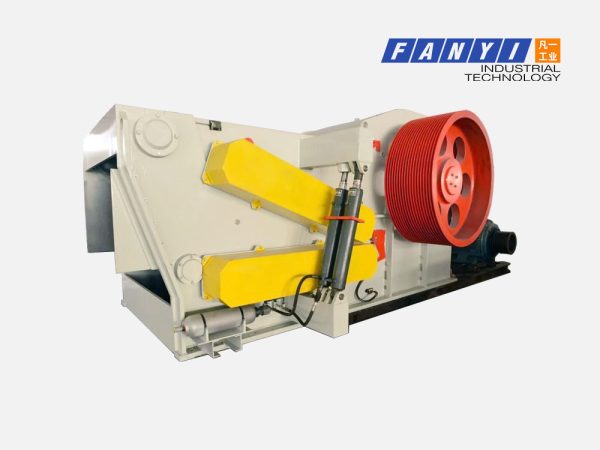

Drum chipper machine BX2113
Drum chipper is a traditional product, which has been widely used by domestic and foreign customers for many years for its superior performance, high quality, and high-cost performance.
Drum chipper is a special equipment for preparing high-quality wood chips, which is suitable for paper mills, particle board mills, fiberboard mills and wood chips production bases, and wood chips export bases. It can cut logs and small-diameter wood into high-quality industrial wood chips with uniform length, flat cut, and even thickness, and also can cut branches and trees, plates, etc.
20-35t/h large capacity drum wood chipper shredder model BX2113 for logs/wood waste using in biomass power plants and MDF production line
Drum wood chipper are the main products in our factory.they are mature and best seller.it can produce finished wood chips 20-30mm . This drum wood chipper widely used in the raw material preparing process in the factories of flakeboard, fiberboard, papermaking and wood chips making plant. Small drum type wood chipper is the best equipment for factory’s laboratory preparing material.
Raw material for Drum type wood chipper cutting is mainly small trail wood, lumbering remainds ( such as branches, twigs, tress pallets etc) and woodworking remainds ( such as slab, plank, log core, waste veneer etc). It also can be used to chip non-lignin raw material (such as flax pole, bulrush, bamboo etc)
BX2113 wood chipper technical parameters:
| Model | BX-218D | BX2113 |
| Capacity | 15~25 tons/hour | 20-35 tons/hour |
| Main Motor | 132KW | 200kw |
| Feeding Motor | 3KW + 4KW | 5KW+7.5KW |
| Discharging Motor | 2.2KW + 2.2KW | 3kw+4kw |
| Max Input diameter | 250mm | 400mm |
| Chip Size | 25-35mm; 2~4mm thickness |
25-35mm; 2~4mm thickness |
| Knife Quantity | 2 pcs | 3pcs |
| Knife Roller Diameter | 800 mm | 1300mm |
| Rotor Speed | 650 rpm | 440rpm |
| Dimension: | 3500*2180*1800mm | 3870*2617*2150mm |
| Weight: | 8350kgs | 13000kgs |
| Motor Brand | China brand | |
| Electric Controller | star-delta starter (CHNT) | |
| Installation | no need concrete-base | |
| Optional: Feeding belt conveyor |
6-10m long; 500mm width, Weight: 520kg Used to transfer (wood logs) into wood chipper | |
| Optional: Discharging belt conveyor |
10-12m long; 600mm width; Weight: 880kg Used to transfer (wood chips) to next step | |
