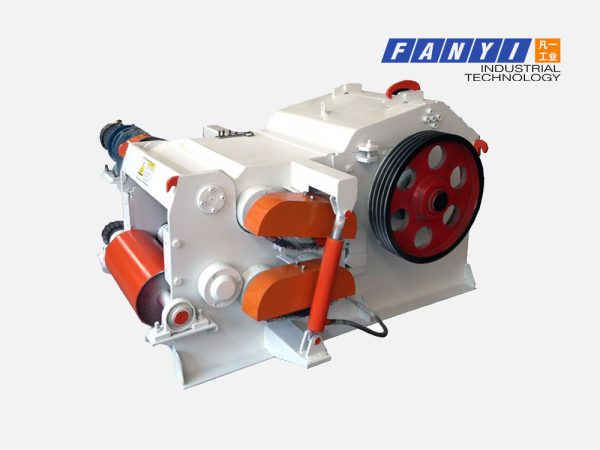

Drum chipper machine BX2110

Drum chipper is a traditional product, which has been widely used by domestic and foreign customers for many years for its superior performance, high quality, and high-cost performance.

Drum chipper is a special equipment for preparing high-quality wood chips, which is suitable for paper mills, particle board mills, fiberboard mills and wood chips production bases, and wood chips export bases. It can cut logs and small-diameter wood into high-quality industrial wood chips with uniform length, flat cut, and even thickness, and also can cut branches and trees, plates, etc.

Drum wood chipper are the main products in our factory.they are mature and best seller.it can produce finished wood chips 20-30mm . This drum wood chipper widely used in the raw material preparing process in the factories of flakeboard, fiberboard, papermaking and wood chips making plant. Small drum type wood chipper is the best equipment for factory’s laboratory preparing material.
Raw material for Drum type wood chipper cutting is mainly small trail wood, lumbering remainds ( such as branches, twigs, tress pallets etc) and woodworking remainds ( such as slab, plank, log core, waste veneer etc). It also can be used to chip non-lignin raw material (such as flax pole, bulrush, bamboo etc)

Drum wood Chipper can be accept all kinds of wood The feeding system draws wood materials into chipper These chips are raw materials for biomass industry,(whole tree logs ,branches ,leaves ,tree limbs, trunks, and the revolving drum (with fly knives on it ) fiber and particleboard plants, pulp & paper industry,pulp wood, veneer, solid wood, cores, slabs, scraps, cut the woods into chips , then chips delivery and also well suitable as fuel in modern heating Chips plants.etc.) into smaller and quality wood chips. out by the under belt conveyor .

BX2110 wood chipper technical parameters:

Model BX2110
FEED SIZE(MM) 350*1000mm
QTY OF FLY KNIVES(PCS) 3*2(4*2/6*2)
SPEED OF KNIVES RUNNING(R/M) 450
MAX DIAMETER FEEDER(MM) 300
WOOD CHIPS SIZE FINISHED(MM) 30  (20-25mm.10-15mm.8-10mm)
CAPACITY(T/H)22 20-25t
MAIN POWER(KW) 160kw
FEEDER POWER(KW) 7.5+11
OIL PUMP POWER(KW) 3
MACHINE SIZE(MM) 2100*1900*2310
WEIGHT(KG) 12770
