Disc chipper (horizontal fed)
Advantages of disc chipper
Simple structure, compact arrangement, cheap price, stable work, low energy consumption, high output, good quality, and low cost of the finished product.
When cutting logs, the quality of wood chips is high and the length of wood chips can be freely adjusted within the specified range.
Wide range of applications. In addition to wood, it can also be used to chip bamboo, thatch, corn stalks, sorghum stalks, and other fibrous culm-like materials.
Wood log chipper with high output, low energy consumption, high-quality wood chips, and high-cost performance.
Various usages. The chips can be as fuel for the power plant, for sale, for paper making, for front preparation for the production line, etc.
1.Disc wood chipper introduction
This series of disc wood chipper adopt to low-voltage or high-voltage .it includes two types which are pulley drive and direct-coupled drive; type of feeding include level and slope. It is widely used in biomass industrial production such as wood powder making machine, ordinary particleboard, wood pellet mill, wood pellet plant, and paper making, etc.
Disc Chipper
2.Disc wood chipper parameter
| model | 600 | 700 | 800 | 1000 | 1200 | 1410 |
| Cutter diameter (mm) | 590 | 690 | 790 | 990 | 1190 | 1380 |
| number of blades() | 4 | 4 | 4 | 4 | 4-6 | 4-6 |
| Blade size (mm) | 150*80*10 | 180*80*0 | 230*90*10 | 260*90*10 | 280*90*10 | 330*90*10 |
| Feeding port size (mm) | 180*200 | 200*220 | 220*260 | 280*320 | 360*360 | 450*450 |
| Speed (r/min) | 680 | 650 | 650 | 600 | 550 | 500 |
| Output (kg) | 1000-1500 | 2000-2500 | 2500-3000 | 3000-4000 | 4000-5000 | 6000-8000 |
| Motor (kw) | 11-15 | 18.5-22 | 30-37 | 45-75 | 75-110 | 132 |

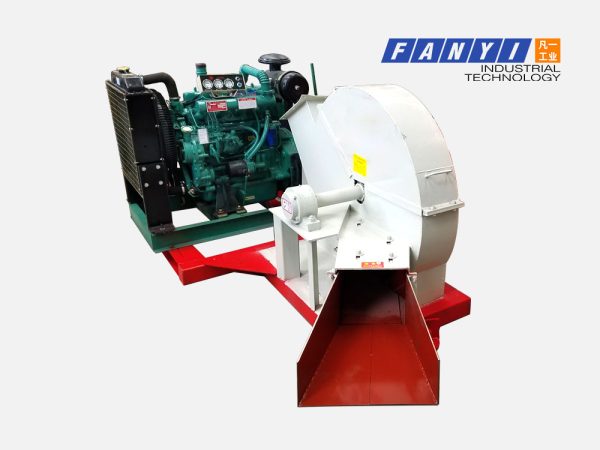

| Diesel engine power (HP) | Single cylinder 15-18 | Single cylinder 22-35 | 4100 (supercharged) | 4108 (supercharged) | 6105 (supercharged) | 6126 (supercharged) |
3.The advantage of disc chipper
- Firm and reasonable structure, easy to install.
- convenient to operate and maintain; high production capacity.
- The final wood chip has fine quality; the length of the wood chips can be adjusted freely in the defined limits.
- This series disk chipper has a different output，the customer can select according to their own needs.
4.Feeding way of wood disc chipper

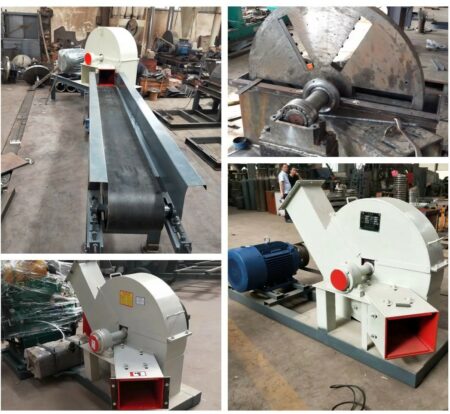

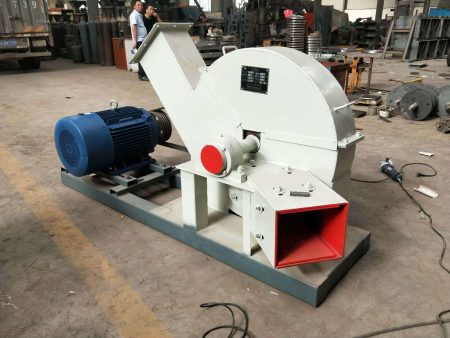

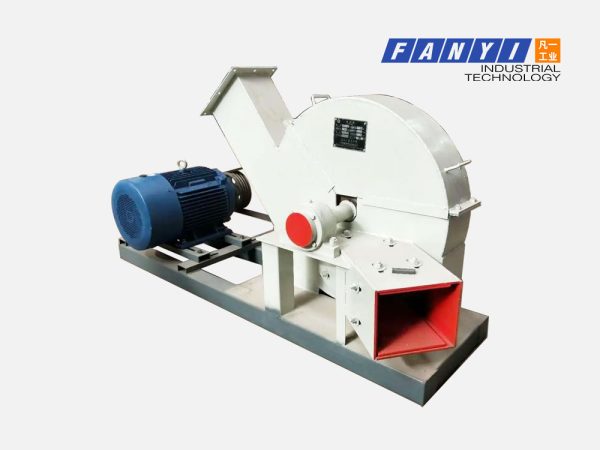

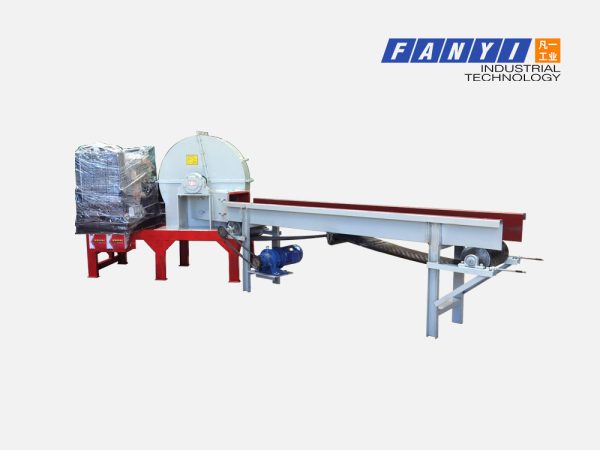

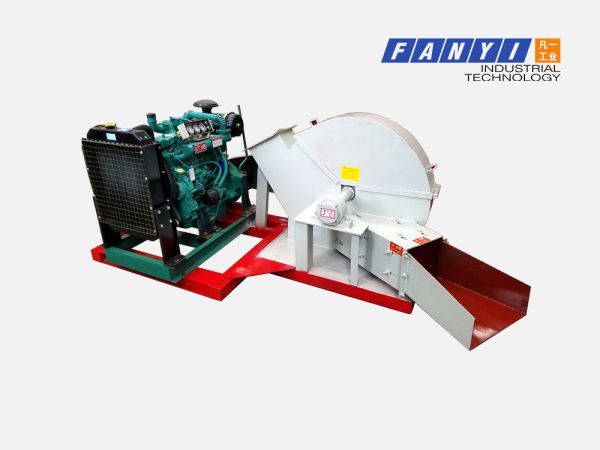

Horizontal feed disc chipper Inclined feed chipper
