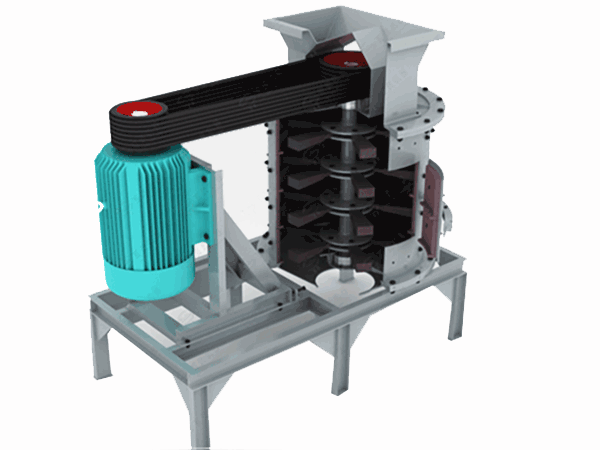

Compound Crusher

Applied material: barite, marble, talcum, calcite, dolomite, fluorite, kaoline, coal, gypsum.This double-rotor compound crusher generates desired materials as feed materials for ball mills in raw cement meal production.

Feed Size: 50-100mm

Capacity: 5-100t/h

Application: mining, metallurgy, refractory, cement, coal, glass, ceramics, and electric power industries.

Introduction: Compound crusher is widely used in medium or fine crushing of hard or special hard materials as mining ore, cement, refractory, bauxite, carborundum, glass raw materials, etc. It is also widely used i

Category:

Compound crusher is widely used in stone crushing line or sand production line. This series crusher is suitable for crushing limestone, clinker, coal and other minerals of building materials, mining, metallurgy, chemical industry. its compressive strength is not more than 140 Mpa, humidity less than 15%.

Notes : The Design will be offered according to each customer’s requirement .

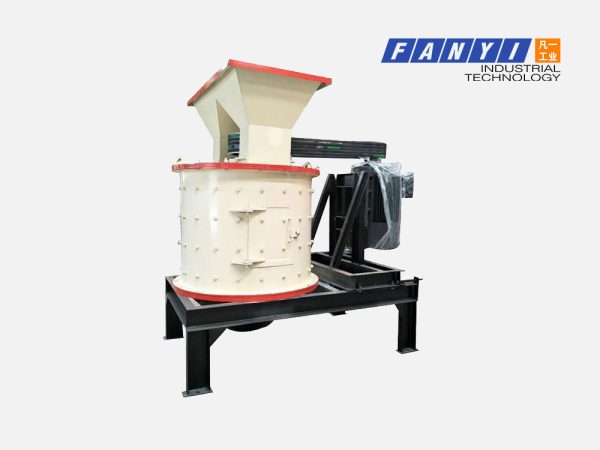

Compound Crusher

Features:

Our compound crusher has large crushing ratio, higher yield, with 1.4 times yield than other crushers. It has efficient crushing capacity for shale, glass, ceramics, river gravel, granite, basalt, iron ore, bluestone, metal ores and other hard materials, particularly widely used in the mechanism aggregates and metal ores. Its wearing parts employ multi-alloy wear-resistant materials with high hardness, high toughness, life expectancy increased by 2-3 times; the gap between hammer and impact plate is adjustable, to meet the crushing requirements of variety materials.

  1. large crushing ratio, no screen bar, no clogging when crushing high moisture and mud materials.
  2. Bearings horizontal arrangement, long life, can crush high temperature materials (such as cement clinker).
  3. Adopt flexible adjustment mechanism, the non-crushing materials can be automatically discharged, will not damage the equipment.
  4. The rotor block is unique structure; the rotor block will not wear. The back cavity is with screw rod or hydraulic opening mechanism; you can easily replace wearing parts. not opening the equipment.

Compound Crusher

Specifications

Model
800
1000
1250
1500
1750
Rotater Diameter(mm)
650
800
1000
1250
1560
Cylinder Height(mm)
800
850
850
1000
1410
Rotating Speed(r/min)
1350
970
740
650
600
Input Size(mm)
50
70
100
100
100
Output Size (mm)
0-5
0-5
0-5
0-5
0-5
Capacity (t/h)
5-15
10-30
20-60
30-80
40-100
Motor
Power(kw)
30
55
75
110
132
Rotating Speed
1440
1440
750
750
750
Overall Dimension(L×W×H)(mm)
2200×860×1980
2700×1160×2000
2800×1400×2730
3100×1900×2300
3350×2100×2800
Weight (t)
2.3
4.5
9.73
18.1
26.61

Remark: The throughput capacity may different when the material is different.

Applications

cobblestone Limestone Dolomite Quartz Weather fossil
cobblestone Limestone Dolomite Quartz Weather fossil
Granite Coal gangue Iron ore Copper ore Lead-zinc mine
Granite Coal gangue Iron ore Copper ore Lead-zinc mine
