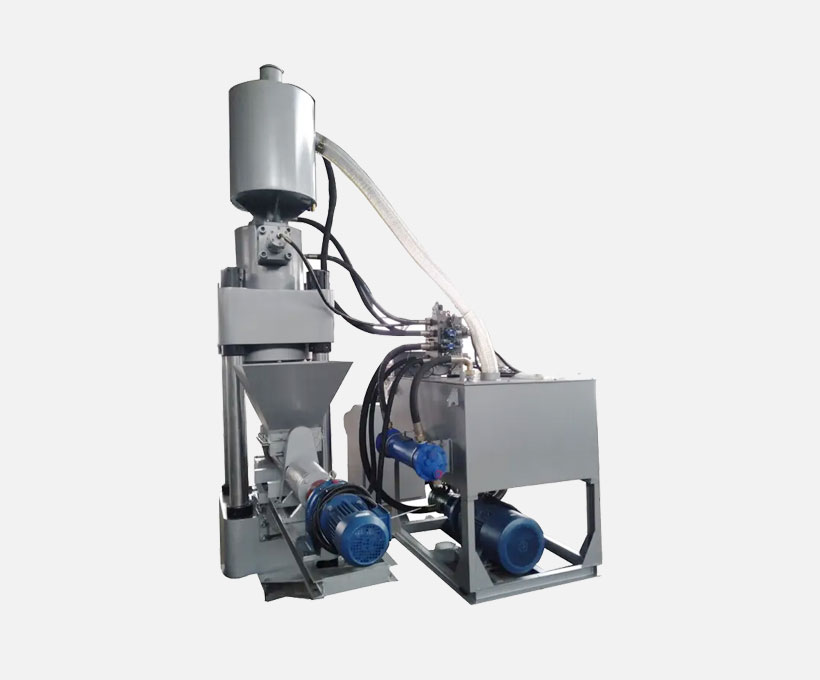

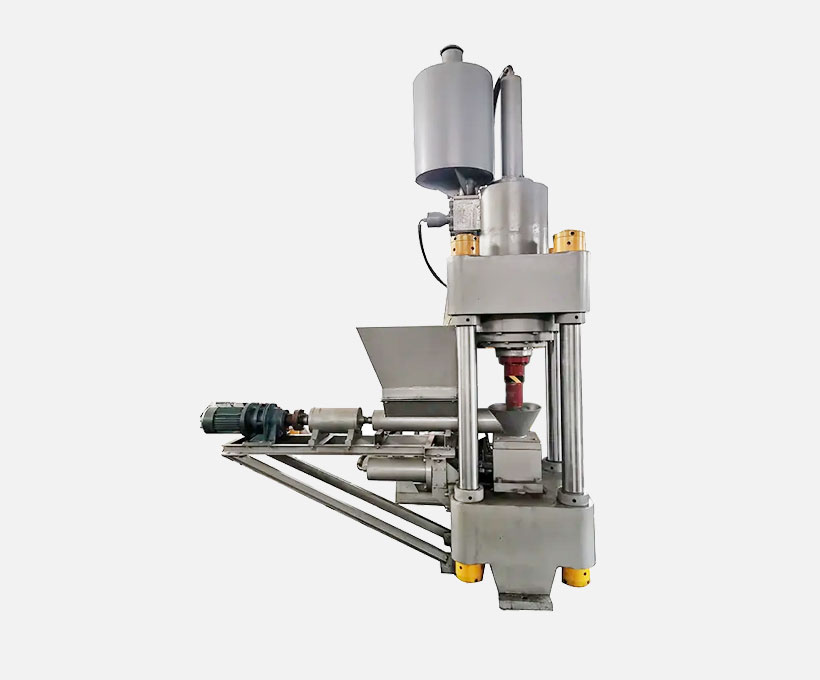

Chip briquetting press Y83-400
Chip Briquetting Press Y83-400 is applied in steel mills, foundries, recycling plants, ferrous & non ferrous smelting industry to press scrap metal chips (max. length 40mm) into high density briquettes (cylinders). Chip Briquetting Press Y83-400 is good for briquetting of cast iron powder, crushed steel turnings, aluminum swarf, copper milling chips, all sorts of metal sawdust, particles, chips & fins, and metal cans shredded to small pieces (smaller than 40mm).
Hydraulic scrap metal chip briquetting press machine has good benefits for metal recycling industry. Nowadays, the shortage of available resources is a problem that every country is facing. No matter developing or developed countries, how to do best recycle is always a hot topic. So we design vertical type or horizontal type hydraulic scrap metal chip briquetting press machine for our clients to deal with their scrap metal to meet our clients’ requirements.
Hydraulic scrap metal chip briquetting press machine is mainly used for pressing all kinds of metal scrap (cast iron scrap, copper scrap, aluminum scrap, etc.) into blocks through the mold, which is convenient for the transportation and treatment of metal scrap. Hydraulic scrap metal chip briquetting press machine is the ideal equipment for copper and iron factory, non-ferrous metal
Features:
- The system is designed with pre-leakage device to eliminate hydraulic shock.
- Advanced fast equipment, to ensure the user’s production needs.
- The electrical part adopts PLC automatic control system.
- The main body adopts the overall steel structure, high strength, good stability, do not need to install anchoring screws.
- Hydraulic scrap metal chip briquetting press machine adopts hydraulic transmission, high professional whole valve block, flow channel, so that the pressure loss of the system is small, eliminate the disadvantages of leakage.
- Adopt cartridge valve, electro-hydraulic proportional valve and oil circuit design, so that the hydraulic system is perfect, even in the case of long-term heavy load, the system will not appear out of control.
Benefits:
- PLC automatic control is easy to operate and maintain.
- Our hydraulic metal baler machine can help you save labor, improve metal recovery, increase the selling price and improve the profit.
- It can help you save working place area, is beneficial to site management.
- Clients can customize packaging specifications and sizes according to their own needs.
What is the Applications of this machine?

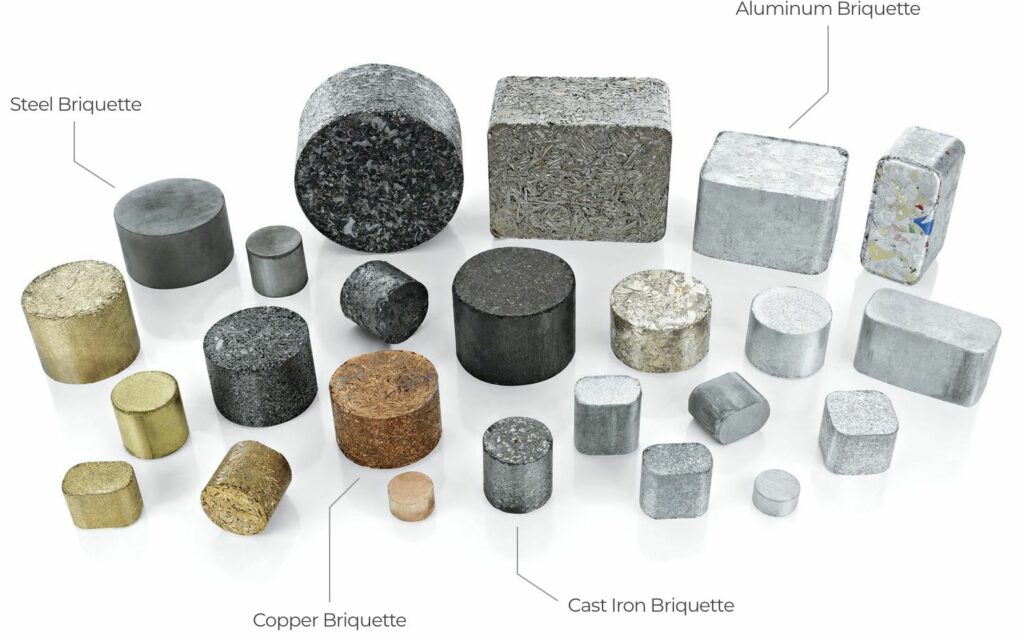

It is applied to compress metal sawdust(steel, cast iron,aluminum and copper) into density briquettes to reduce burning loss during smelting.Cast iron briquettes,can substitute pig iron as raw material.

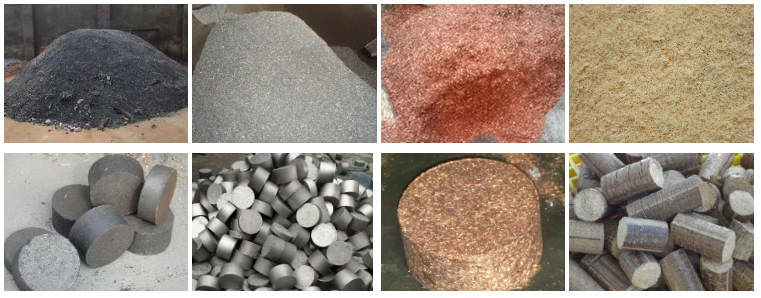

Iron filings Aluminum scrap Copper shavings Sawdust
Chip briquetting machine Y83-400 Main Parameters:
Main cylinder force: 345 MT
Auxiliary cylinder force: 55 MT
Press mould size: dia125×H300 / dia140×H300 MM
Briquette size: dia125×H(70-100) / dia140×H(70-100) MM
Briquette weight: 5-7.2 / 5.9-8.5 kg (cast iron)
Production rate: 1200-1300 kg/hr (cast iron)
Electric motor: 30/37 kW
Application
| Model | Cyl. Force | Press Mould | Pressure on Briquet |
Briquet Size | Briquet Weight – Cast Iron |
Production Rate – Cast Iron |
Motor |
| (kN) | (mm) | (MPa) | (mm) | (kg) | (kg/hr) | (kW) | |
| Y83-250 | 2000+550 | dia110×180 | 263 | dia110×(50-70) | 2.6-3.7 | 800-900 | 18.5 |
| dia120×180 | 221 | dia120×(50-70) | 2.9-4.1 | ||||
| YE83-250 | 2000+550 | dia110×300 | 263 | dia110×(70-100) | 3.6-5.2 | 1000-1100 | 22 |
| dia120×300 | 221 | dia120×(70-100) | 4.1-5.9 | ||||
| Y83-315 | 2850+550 | dia120×180 | 278 | dia120×(50-70) | 3.1-4.5 | 900-1100 | 22 |
| dia140×180 | 204 | dia140×(50-70) | 3.6-5.1 | ||||
| YE83-315 | 2850+550 | dia120×300 | 278 | dia120×(70-100) | 4.4-6.3 | 1100-1200 | 30 |
| Y83-400 | 3450+550 | dia125×300 | 326 | dia125×(70-100) | 5-7.2 | 1200-1300 | 30/37 |
| dia140×300 | 260 | dia140×(70-100) | 5.9-8.5 | ||||
| Y83-500 | 4900+600 | dia150×300 | 283 | dia150×(70-100) | 6.9-9.9 | 1300-1800 | 30/45 |
| dia180×300 | 196 | dia180×(70-100) | 8.9-12.8 | ||||
| YE83-500 | 4900+600 | dia150×300 | 283 | dia150×(70-100) | 6.9-9.9 | 1300-1800 | 45 |
| dia180×300 | 196 | dia180×(70-100) | 8.9-12.8 |
Notice：
1.The technical parameters above are not binding,we reserve the right to adjust according to the actual need.
2.If you need non-standard models with different briquette size,different briquette shape,you can call us or email us for customization.
