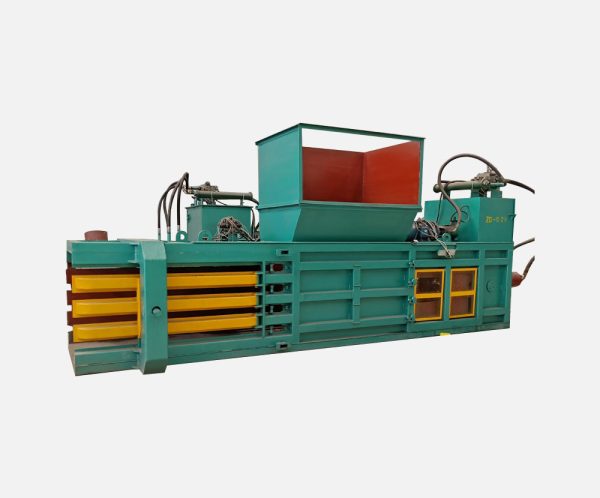

Cardboard baling press HPA80

Cardboard Baling Press HPA80A is applied for automatic feeding (by conveyor), automatic compression, and automatic strapping of paper, cardboard, carton, OCC, waste cardboard, scrap cardboard, newspaper, office paper, magazine, corrugated cardboard, carton box, etc.

Category:

Features

Horizontal cardboard baler, automatic wire strapping, automatic feeding with conveyor.

PLC control, touch screen & observation window, real-time display & error alarm, bale length setting.

Floating necking device on baler chamber for automatic distribution of pressure on 4 sides.

Dispersed cutting blades on baler feed opening for cutting of long cardboard material.

HPA80A Main Parameters:

Main cylinder force: 80 MT
Feeding throat: L1600×W720 MM
Bale size: W720×H1100 MM
Bale weight: 400-530 kg (paper, cardboard)
Production rate: 3.2-4.2 tons/hr (paper, cardboard)
Electric motor: 45+7.5 kW
Conveyor effective width: 1400 MM

Application

        Cardboard Baling Press HPA80A is applied for automatic feeding (by conveyor), automatic compression, and automatic strapping of paper, cardboard, carton, OCC, waste cardboard, scrap cardboard, newspaper, office paper, magazine, corrugated cardboard, carton box, etc.

Cardboard Baling Press HPA80A is also used for baling of soft plastic material (PET bottle, PE film, car bumper, etc), but it’s not suitable for baling of hard plastic material (computer case, etc).

Model Main Cyl. Force Hopper Size Bale Size Bale Weight
– Carton
Production
– Carton
Power Conveyor Width
(Ton) (L×W) (mm) (W×H) (mm) (kg) (tons/hr) (kW)  (mm)
HPA50 50 900×700 700×700 200-280 1.4-2.0 22+5.5 Air Duct
HPA63 63 1600×700 230-310 2.1-2.8 37+5.5 1400
HPA80A 80 1600×720 720×1100 400-530 3.2-4.2 45+7.5
HPA80B 1600×800 800×1100 430-580 3.4-4.6
HPA80C 1450×1100 1100×720 400-530 3.5-4.8
HPA100A 100 1600×1000 1000×1100 670-1050 6.0-8.5 55+15
HPA100B 1600×1100 1100×1100 720-1150 6.4-9.1
HPA125A 125 2200×1100 720-1150 7.2-10.2 74+7.5 1600
HPA125B 1100×1250 790-1250 7.9-11.2
HPA150A 150 1100×1100 760-1280 7.6-11.5 90+7.5
HPA150B 1100×1250 830-1400 8.3-12.6
HPA180 180 1100×1100 810-1350 11.3-16.2 180+7.5
