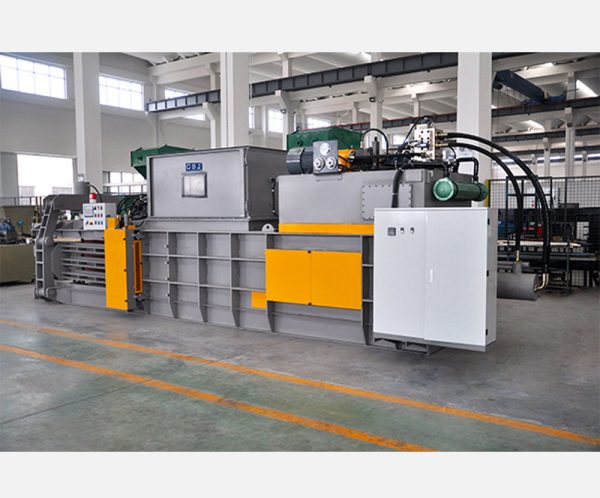

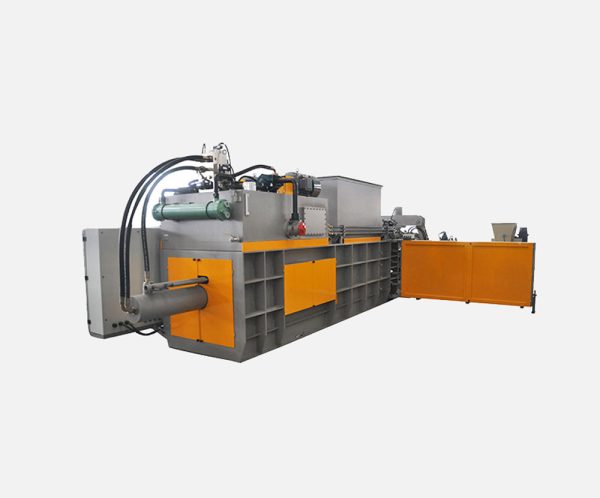

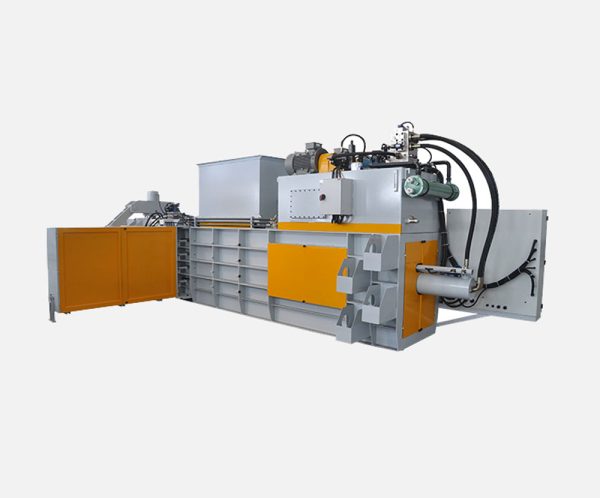

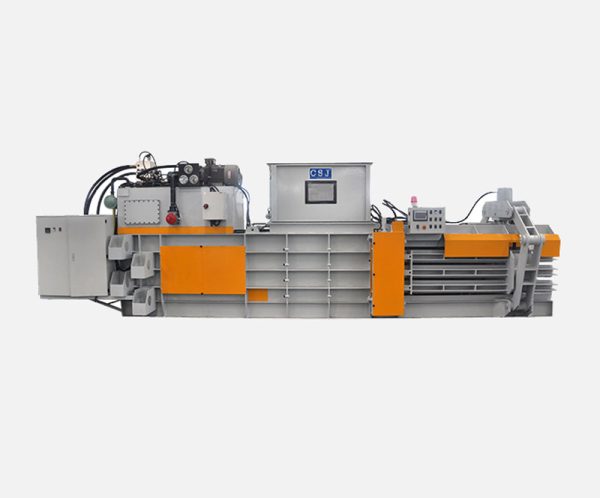

Cardboard baling machine HPA100
Cardboard Baling Machine HPA100A is applied for automatic feeding (by conveyor), automatic compression, and automatic strapping of paper, cardboard, carton, OCC, waste cardboard, scrap cardboard, newspaper, office paper, magazine, corrugated cardboard, carton box, etc.
Medium-sized automatic horizontal model widely used in carton factory packaging factory printing factory paper -making factory waste disposal station waste recycle station logistics and other places that can generate plenty of waste materials and have a request unmanned operation; Specially for different leftover material from Waste paper boxes cardboard die-cutting machine and plastic PET bottles plastic film straw cloth palm fibers fiber cotton and other loose materials .
Features
Horizontal cardboard baler, automatic wire strapping, automatic feeding with conveyor.
PLC control, touch screen & observation window, real-time display & error alarm, bale length setting.
Floating necking device on baler chamber for automatic distribution of pressure on 4 sides.
Dispersed cutting blades on baler feed opening for cutting of long cardboard material.
HPA100A Main Parameters:
Main cylinder force: 100 MT
Feeding throat: L1600×W1000 MM
Bale size: W1000×H1100 MM
Bale weight: 670-1050 kg (paper, cardboard)
Production rate: 6.0-8.5 tons/hr (paper, cardboard)
Electric motor: 55+15 kW
Conveyor effective width: 1400 MM
Application
Cardboard Baling Machine HPA100A is applied for automatic feeding (by conveyor), automatic compression, and automatic strapping of paper, cardboard, carton, OCC, waste cardboard, scrap cardboard, newspaper, office paper, magazine, corrugated cardboard, carton box, etc.
Cardboard Baling Machine HPA100A is also used for baling of soft plastic material (PET bottle, PE film, car bumper, etc), but it’s not suitable for baling of hard plastic material (computer case, etc).
| Model | Main Cyl. Force | Hopper Size | Bale Size | Bale Weight – Carton |
Production – Carton |
Power | Conveyor Width |
| (Ton) | (L×W) (mm) | (W×H) (mm) | (kg) | (tons/hr) | (kW) | (mm) | |
| HPA50 | 50 | 900×700 | 700×700 | 200-280 | 1.4-2.0 | 22+5.5 | Air Duct |
| HPA63 | 63 | 1600×700 | 230-310 | 2.1-2.8 | 37+5.5 | 1400 | |
| HPA80A | 80 | 1600×720 | 720×1100 | 400-530 | 3.2-4.2 | 45+7.5 | |
| HPA80B | 1600×800 | 800×1100 | 430-580 | 3.4-4.6 | |||
| HPA80C | 1450×1100 | 1100×720 | 400-530 | 3.5-4.8 | |||
| HPA100A | 100 | 1600×1000 | 1000×1100 | 670-1050 | 6.0-8.5 | 55+15 | |
| HPA100B | 1600×1100 | 1100×1100 | 720-1150 | 6.4-9.1 | |||
| HPA125A | 125 | 2200×1100 | 720-1150 | 7.2-10.2 | 74+7.5 | 1600 | |
| HPA125B | 1100×1250 | 790-1250 | 7.9-11.2 | ||||
| HPA150A | 150 | 1100×1100 | 760-1280 | 7.6-11.5 | 90+7.5 | ||
| HPA150B | 1100×1250 | 830-1400 | 8.3-12.6 | ||||
| HPA180 | 180 | 1100×1100 | 810-1350 | 11.3-16.2 | 180+7.5 |
