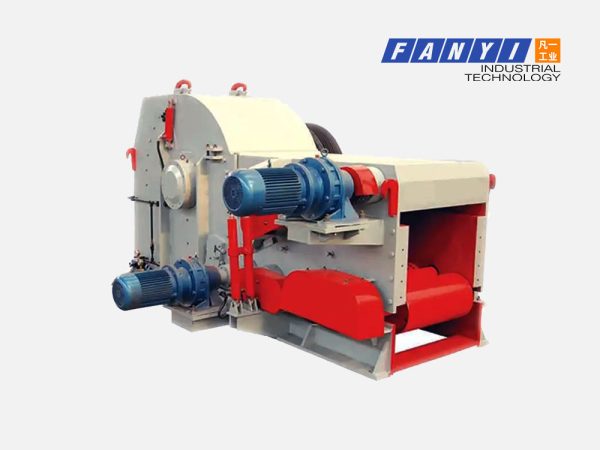

BX2116 Drum Chipper
Drum wood Chipper can be accept all kinds of wood (whole tree logs ,branches ,leaves ,tree limbs, trunks, pulp wood, veneer, solid wood, cores, slabs, scraps, etc.) into smaller and quality wood chips. These chips are raw materials for biomass industry, fiber and particleboard plants, pulp & paper industry, and also well suitable as fuel in modern heating plants.We can design different models to meets your requirements .
DRUM WOOD CHIPPER 710kw main motor with capacity 200cbm
Product Description
The Drum wood chipper machine is a special device of producing wood chips.
It is widely used in stock workshop section of industrial manufacture.
For example, the flake board, fibre board, building board, straw power plant.
Main Performance Features
(1).The engine of wood chipper, welded by high strength sheet metal, is the support foundation for the whole machine.
(3).The pressed block fasten the dead knife in the knife seats by specialized in manufacturing of high strength bolts.
(4).The knife base is fixed in the engine base by clamp which can pass through the hole of side wall of base free.
(5).The chips can fall down through the screen and discharge the bottom of engine base.
(6).Oversized wood chips can be broken by grinding rod installed in the engine base.
| 1. Feed System | |
| Type | Chain feed |
| Model | BX2116 |
| Motor power | 7.5kw |
| Reducer | KAF107 |
| Width | 1250mm |
| Delivery length | 5000mm |
| 2. ontology system equipment | |
| Size of the machine | 4500*3100*2600mm |
| Diameter of cutter roller | 1600mm |
| Knife roller speed | 350rpm |
| Productive capacity | 30-60T |
| Feed inlet | 1250*750mm |
| Number of flying knives | 4*3 |
| Maximum diameter of raw materials processed | 600mm |
| Main motor type/power | 400kw（630kw、710kw） |
| Feed roller motor power | 18.5 kw*2 |
| Reducer | KAF127*2 sets |
| 3. discharging system equipment | Support belt conveyor |
| Motor power | 15kw |
| Width/length | 1200mm*11000mm |
| Tape material | 4 layers nylon |
| Reducer | BWD4 |
| 4. hydraulic systems | |
| Hydraulic tank volume | 120L |
| Hydraulic oil pump motor | 3KW 480V60HZ |
| Hydraulic Pump Type | 4WE10D31B |
| 5. control cabinet | |
| control cabinet | XL-21 low voltage, frequency conversion, remote control |
